VFD Panel

VFD PANEL

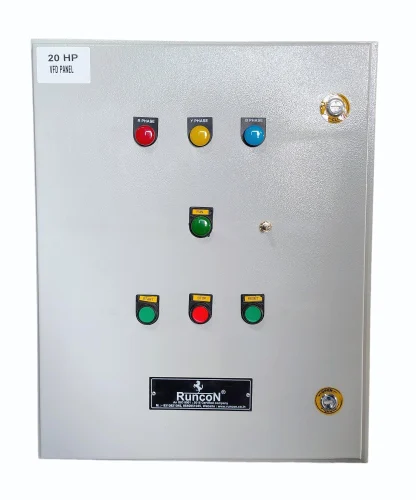

RuncoN VFD Panel (Variable Frequency Drive Panel) is an electrical control panel that houses a Variable Frequency Drive (VFD) — a device used to control the speed and torque of electric motors by varying the frequency and voltage of their power supply.

Main Components

1. VFD (Variable Frequency Drive): The core component, controlling motor speed.
2. Main Breaker or Disconnect Switch: Provides isolation and overcurrent protection.
3. Input/Output Contactors or Relays: For switching power or signals.
4. Overload Relays: Protect the motor from overheating or overcurrent.
5. Control Transformers: Step down voltage for control circuitry.
6. PLC or Logic Controllers (Optional): For advanced control logic.
7. HMI / Human Machine Interface (Optional): For user interaction and monitoring.
8. Cooling Fans or Ventilation: Keeps the drive and other components at safe temperatures.

What It Is Used For

1. Reduce energy consumption, especially in pumps and fans.
2. Improve process control.
3. Extend equipment life.
4. Allow soft start/stop of motors.

Applications

1. HVAC systems
2. Water treatment plants
3. Conveyors
4. Pumps and fans
5. Crushers and mixers in industrial settings
