Capacitors

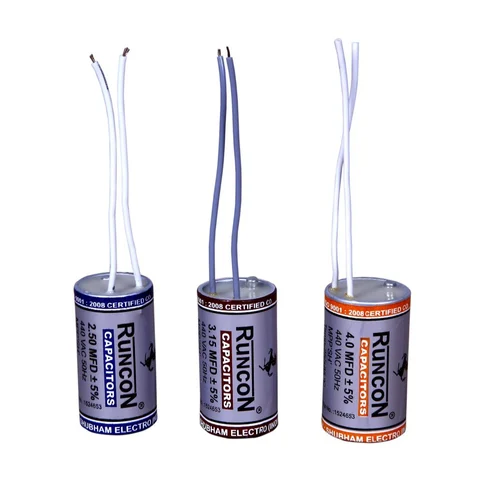

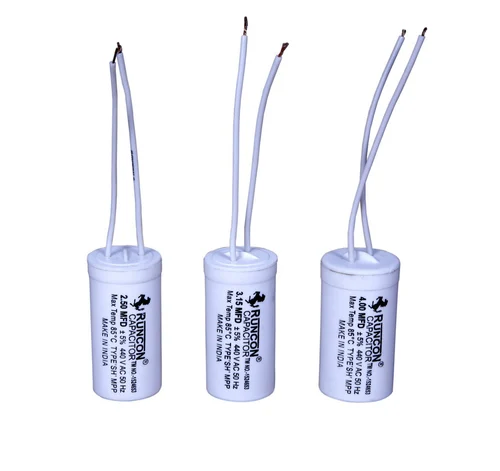

FAN CAPACITOR

RuncoN fan capacitor is used in ceiling fans, table fans, pedestal fans, and other AC-powered fans. Its primary role is to help the fan motor start and run efficiently by creating a phase shift in the power supply, which generates the necessary torque for operation.

Purpose of a Fan Capacitor

1. Starting the Motor: Helps the fan motor overcome inertia and begin rotating by supplying additional starting torque.
2. Running the Motor: Enhances motor performance by maintaining a steady phase difference between the electrical windings, improving efficiency and speed.

Available Range

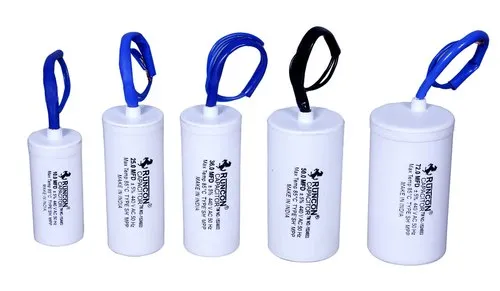

MOTOR CAPACITOR

RuncoN motor capacitor is an electrical device used with electric motors to improve their performance, efficiency, and reliability. It stores and releases electrical energy to stabilize and optimize the motor's operation. These capacitors are commonly used in single-phase motors.

Types

1. Motor Run Capacitor: Improves the motor's efficiency and running performance. Remains connected while the motor is running. Typically has lower capacitance values (e.g., 5–72 µF). Rated for continuous operation.

Available Range

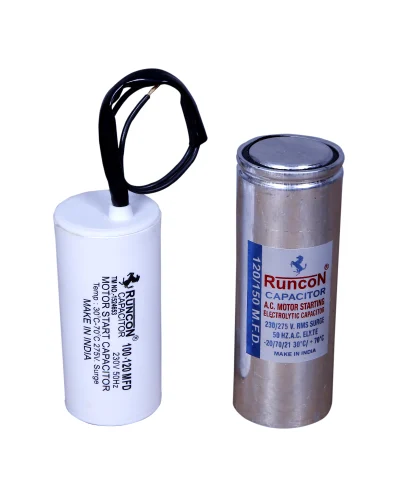

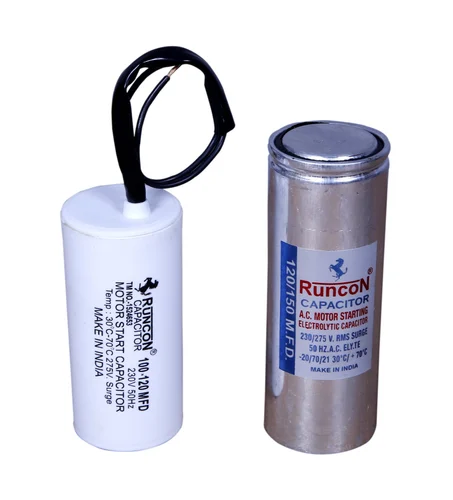

MOTOR START CAPACITOR

RuncoN motor start capacitor is an electrical component used in single-phase induction motors to provide an extra boost of starting torque. It temporarily increases the phase difference between the motor's windings, allowing the motor to start rotating efficiently.

Features

1. High Capacitance: Typically ranges from 40 µF to 500 µF, depending on motor size.
2. Voltage Rating: Usually 220–240 VAC.
3. Temporary Operation: Connected only during startup; disconnected once the motor reaches ~70–80% of rated speed.
4. Short-Duty Cycles: Designed for brief usage during each startup.

Available Range

SUBMERSIBLE CAPACITOR

RuncoN submersible capacitor is specifically designed for use with submersible pump motors and other submerged electrical systems. Built to operate in environments exposed to moisture, pressure, and varying temperatures.

Purpose

1. Starting the Motor: Provides the necessary starting torque for single-phase submersible motors.
2. Improving Efficiency: Optimizes motor performance by maintaining the power factor.
3. Stable Operation: Ensures smooth motor operation by stabilizing voltage and current flow.

Available Range

OIL CAPACITOR

RuncoN oil capacitor is used in ceiling fans, table fans, pedestal fans, and other AC-powered fans to help the fan motor start and run efficiently by creating a phase shift in the power supply.

Purpose

1. Starting the Motor: Helps the fan motor overcome inertia and begin rotating by supplying additional starting torque.
2. Running the Motor: Enhances motor performance by maintaining a steady phase difference between the electrical windings.

Available Range

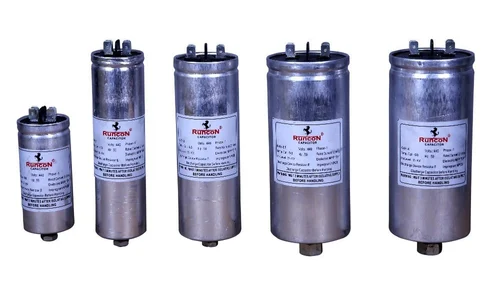

SINGLE PHASE kVAR CAPACITOR

In electrical systems, kVAR (kilovolt-amperes reactive) is a unit of reactive power. Reactive power exists in AC systems due to inductive or capacitive loads, which cause current and voltage to go out of phase.

Formula

Q = V × I × sin(ϕ) / 1000

Available Range
