APFC PANEL

APFC PANEL

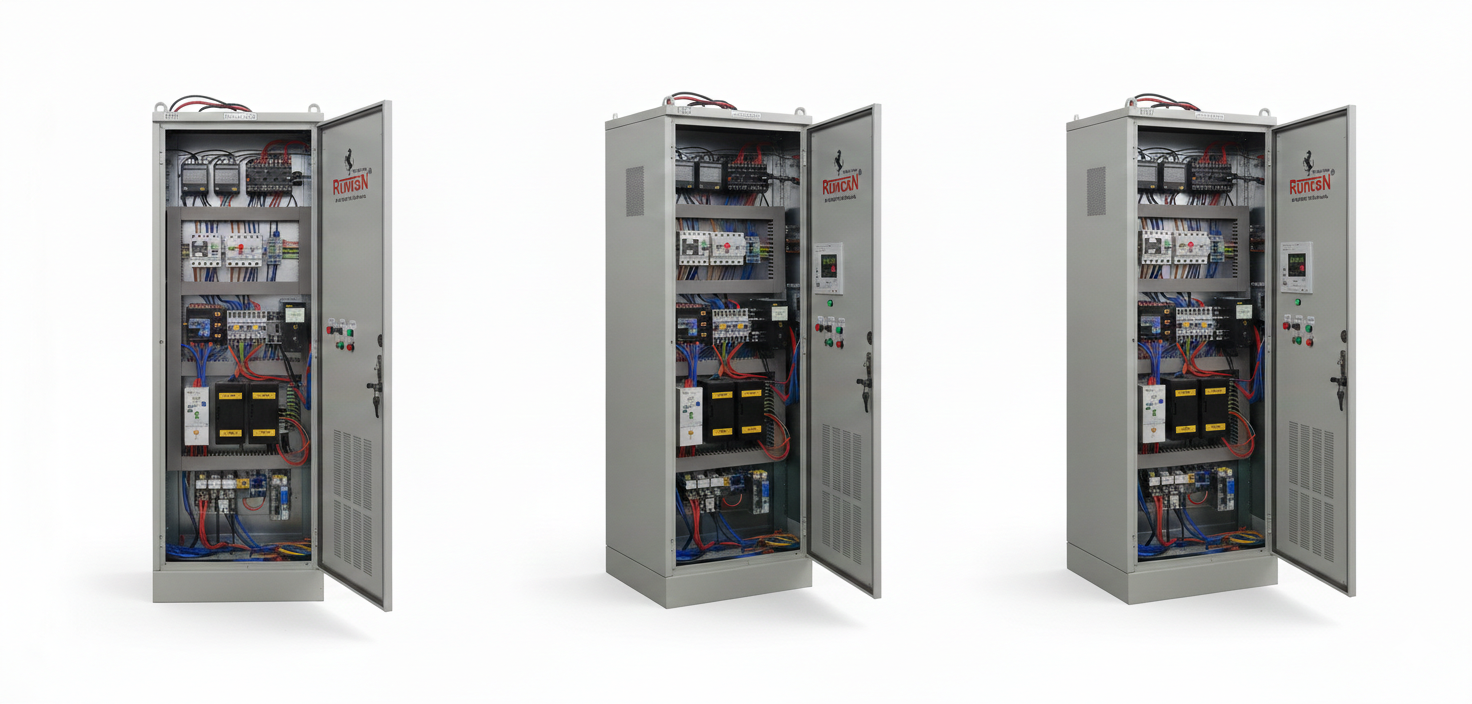

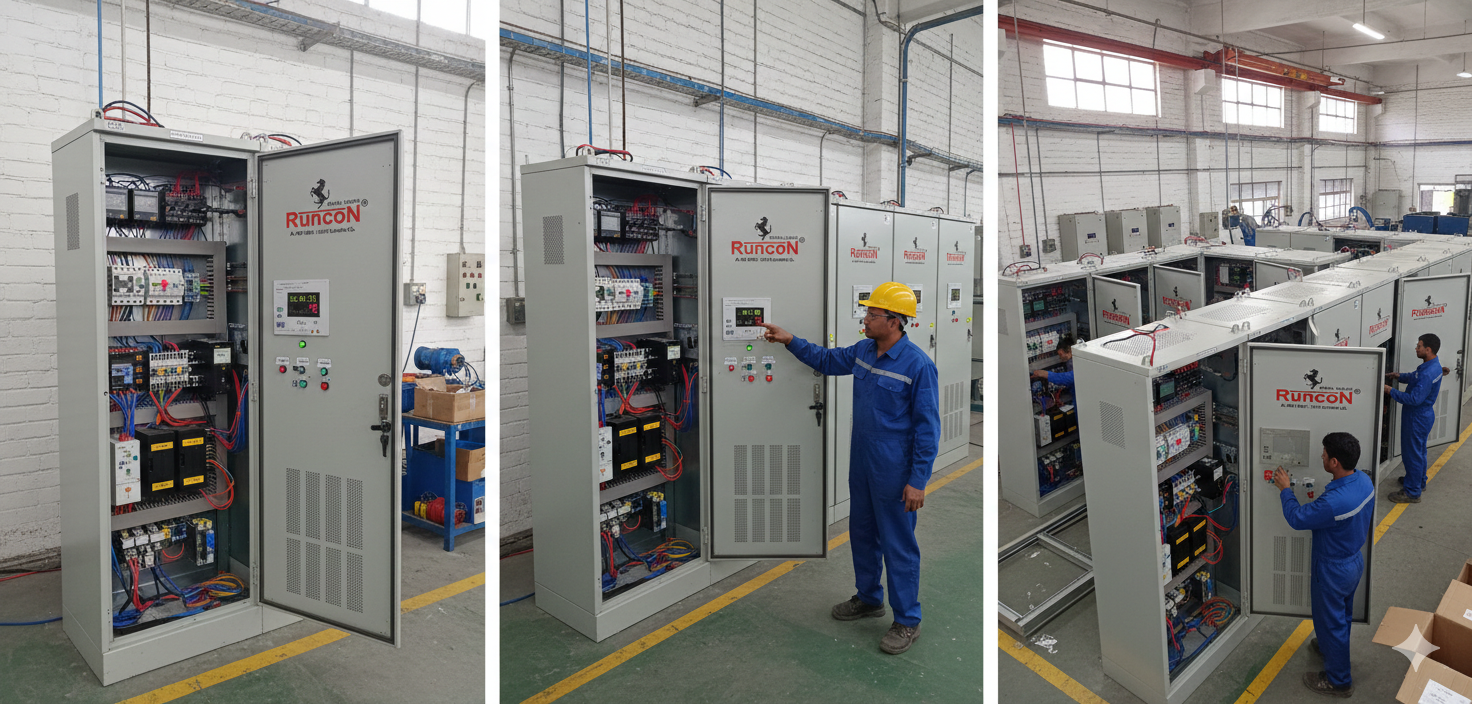

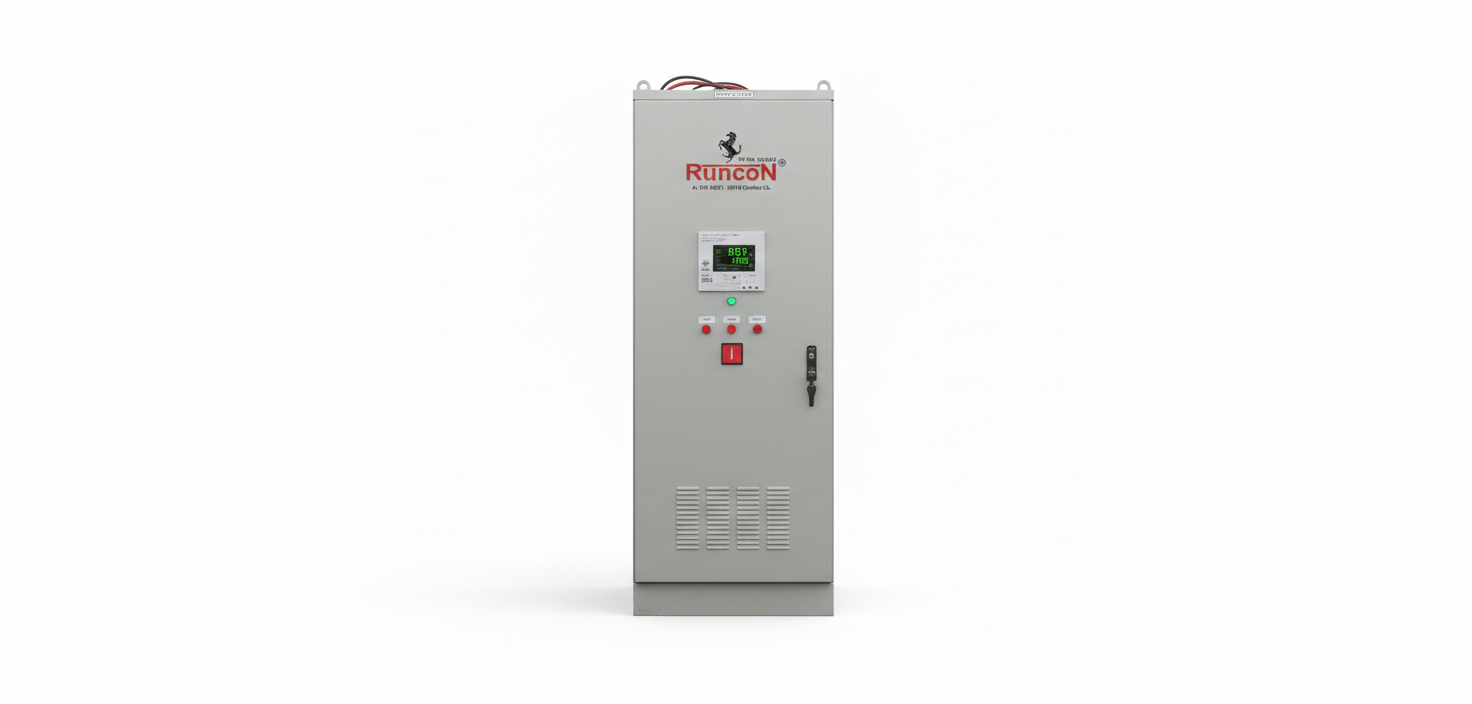

RuncoN Automatic Power Factor Correction (APFC) Panel is an electrical control panel designed to improve power factor by automatically adjusting the reactive power in a system. This is achieved by switching capacitor banks on or off based on the load requirements. APFC panels are commonly used in industrial and commercial installations to ensure efficient energy use and reduce penalties for low power factor from utility providers.

Working Principle

1. Power Factor Monitoring: The APFC controller measures the real-time power factor using data from CTs.
2. Reactive Power Adjustment: If the power factor falls below a set threshold, the controller activates capacitor banks to provide the required reactive power.
3. Automatic Operation: Capacitor banks are switched on/off based on load variations to maintain a desired power factor.

Advantages of APFC Panels

1. Improved Power Factor: Enhances energy efficiency and reduces power losses.
2. Cost Savings: Minimizes penalties for low power factor from utility providers.
3. System Protection: Reduces strain on electrical equipment by maintaining voltage stability.
4. Automatic Operation: No manual intervention needed, reducing labor and error risks.
5. Compact Design: Saves space compared to traditional capacitor bank setups.
