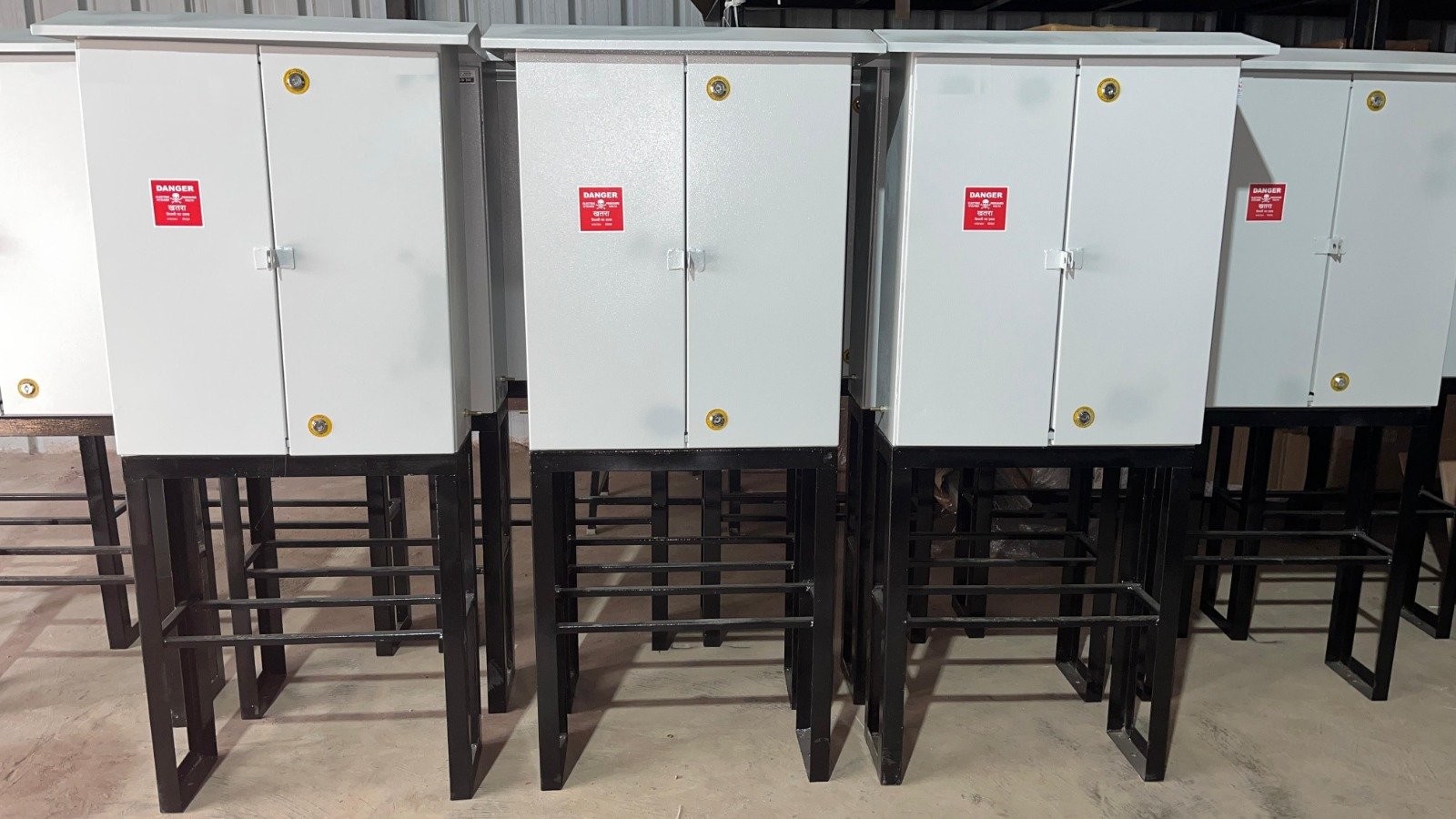

CCMS STREET LIGHT PANEL

RuncoN CCMS Street Light Panel is an electrical control panel used to control, monitor, and protect a group of street lights from a central location.

2. Main Function

The CCMS panel performs these important functions:

• Automatic ON/OFF control of street lights
• Remote monitoring through internet or GSM network
• Energy consumption monitoring (kW, kWh, Voltage, Current, PF)
• Fault detection such as lamp failure, overload, or voltage issues
• Data logging and reporting for maintenance and analysis
• Alarm notifications through SMS/email when faults occur

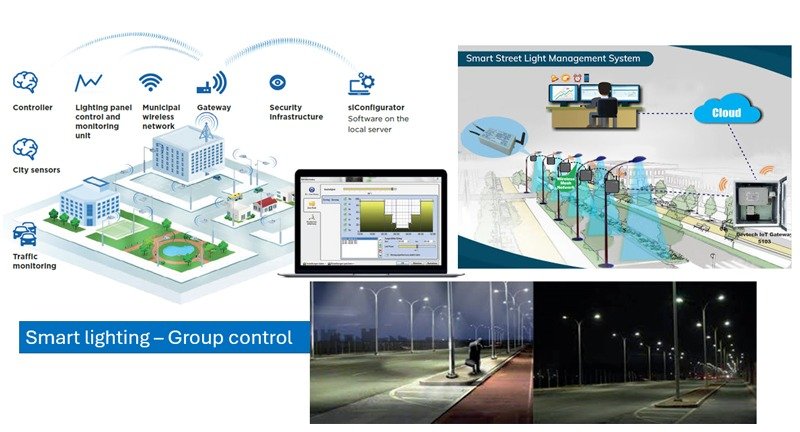

This allows city authorities to manage hundreds of street lights from one control room.

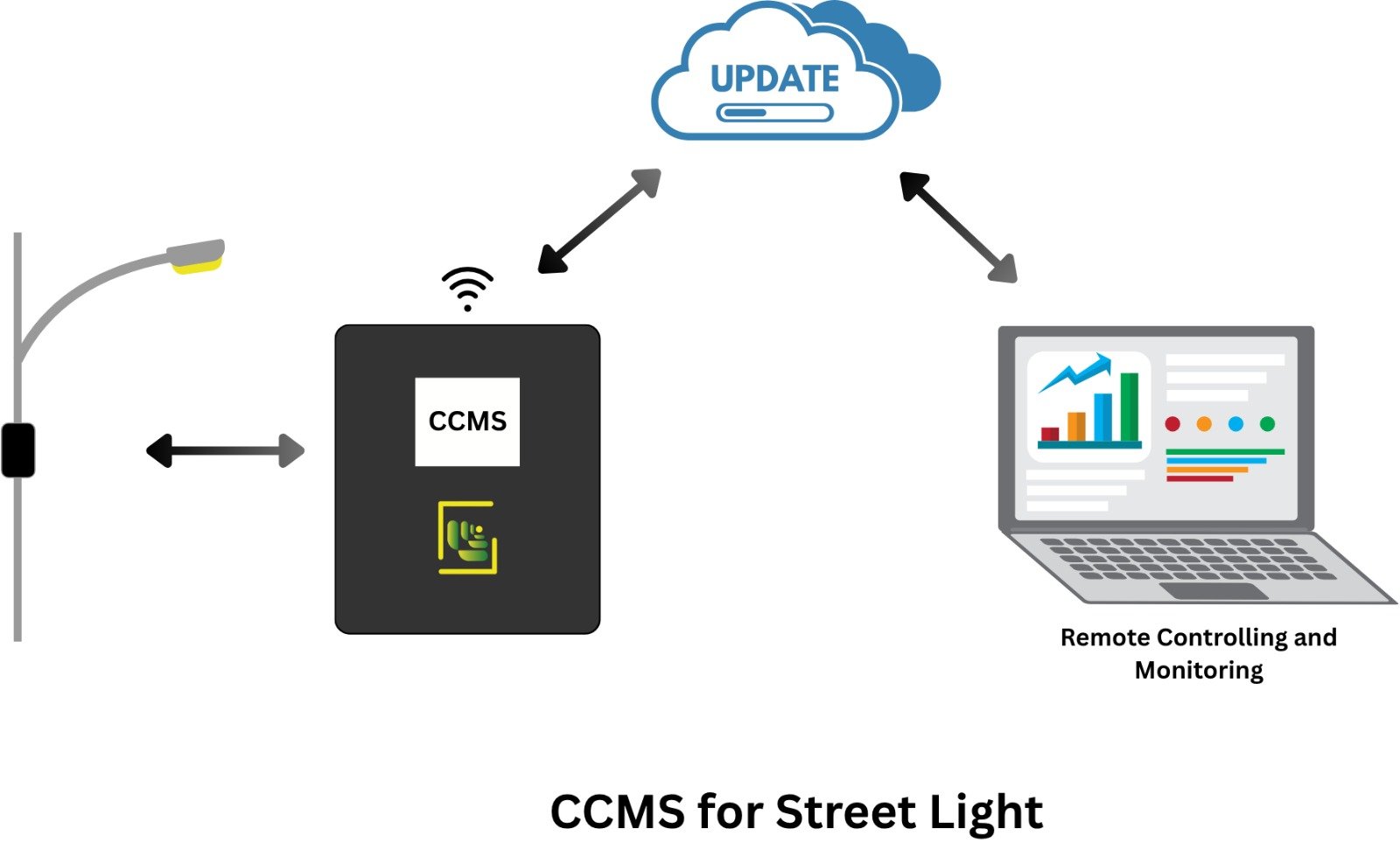

1. How CCMS Street Light Panel Works

• Street lights are connected to the CCMS control panel.
• The panel contains energy meter, controller, relays/contactors, and communication module.

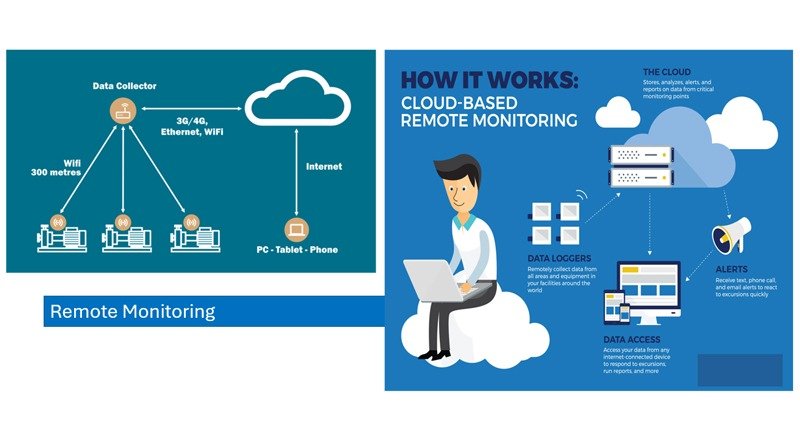

• The controller sends data to a cloud server using GSM / GPRS / IoT network.
• Operators can monitor and control lights remotely using a web dashboard or software.

Example:

• Lights can turn ON automatically at sunset
• Lights can turn OFF automatically at sunrise

6. Advantages

Energy saving
Remote monitoring
Reduced maintenance cost
Quick fault detection
Automatic street light control
Suitable for Smart City Projects
